Braid reinforcement tubing is a cornerstone of numerous industries, offering unmatched strength and durability. With Demax’s braid reinforcement tubing boasting precise specifications—inner diameter ranging from 0.5mm to 15mm with a tolerance of ±0.01mm, and tube wall thickness between 0.07mm to 3mm—reliability is assured. In tubing applications, where safety and longevity are paramount, strength and durability are non-negotiable. This outline is dedicated to exploring the multifaceted aspects of braid reinforcement tubing, from its materials and manufacturing processes to its diverse applications, emphasizing its critical role in modern engineering.
Understanding Braid Reinforcement
Defining Braid Reinforcement

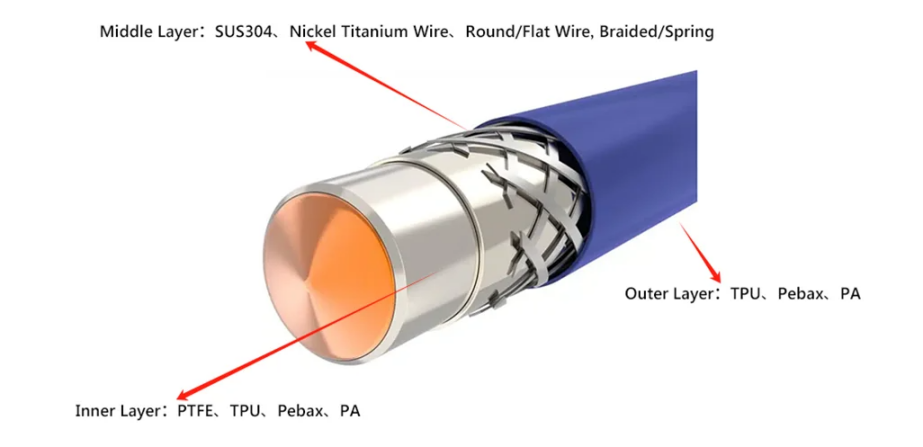

Braid reinforcement involves intricately weaving one or more strands of materials, such as fibers or wires, in a crisscross pattern around a tubular core. This method significantly boosts the structural integrity and resilience of the tubing, providing robust resistance against pressure, bending, and various mechanical stresses.
Exploring Braiding Patterns in Tubing
Tubing utilizes diverse braiding patterns, including:
- Round Braid: Featuring strands braided in a circular pattern around the core, it’s the simplest form.
- Flat braid: The strands are intricately woven in a flat ribbon-like structure. Provide greater flexibility.
- Diamond Braid: Interlacing strands in a diamond pattern enhances tensile strength and flexibility.
- Square Braid: The strands are carefully woven into a square pattern. Enhances stability and resistance to stress.
Advantages of Braid Reinforcement over Alternatives
Braid reinforcement stands out due to several benefits over alternative methods like winding or spiraling:
- Strengthened Integrity: The crisscross design ensures even stress distribution, resulting in heightened tensile strength.
- Enhanced Flexibility: Despite its reinforced structure, braid reinforcement maintains superior flexibility, ideal for applications requiring maneuverability.
- Kink Resistance: The woven configuration prevents kinking, ensuring uninterrupted fluid flow and operational dependability.
- Consistent Pressure Distribution: Braid reinforcement uniformly disperses pressure along the tubing’s length, mitigating the risk of failure.
Material Selection
Common Materials in Braid Reinforcement Tubing
Materials commonly employed for braid reinforcement encompass:
- Nylon: High pressure resistance.
- Polyester: Polyester offers high strength and chemical resistance. Ideal for harsh environments.
- Stainless Steel: Providing superior corrosion resistance and mechanical strength, it’s an ideal choice for high-pressure and high-temperature applications.
Influential Factors in Material Selection
Material selection hinges on several key factors, including:
- Strength: Chosen materials must possess adequate strength to withstand intended operating conditions.
- Flexibility: Flexibility is imperative for applications necessitating bending or maneuverability.
- Chemical Resistance: Resistance to chemicals and environmental factors ensures prolonged durability and reliability.
- Cost Considerations: Material cost and availability play pivotal roles in the selection process.
Tailoring Materials for Specialized Applications
Specialized applications, such as medical and aerospace, demand additional considerations, including:
- Biocompatibility: Medical-grade materials must be biocompatible to ensure patient safety and well-being.
- Weight Optimization: Aerospace applications prioritize lightweight materials to enhance fuel efficiency and overall performance.
- Sterilization Compatibility: Materials used in medical settings must endure sterilization processes without degradation, maintaining functionality and safety.
Structural Mechanics
Analyzing Braid Reinforcement’s Strength Enhancement
Braid reinforcement fortifies tubing strength through:
- Stress Distribution: The crisscross configuration evenly distributes stress, mitigating the formation of weak points.
- Tensile Strength Augmentation: Interlocking strands substantially boost tensile strength, enabling tubing to withstand elevated pressures.
- Flexible Integrity: Braid reinforcement maintains flexibility while fortifying strength, expanding the spectrum of feasible applications.
Impact of Braiding Angle and Density on Mechanical Properties
Braiding angle and density profoundly influence mechanical properties such as:
- Tensile Strength: Higher braiding angles and densities typically yield heightened tensile strength.
- Flexibility Dynamics: Lower braiding angles and densities offer increased flexibility, while higher densities impart enhanced stiffness.
- Crush Resistance Enhancement: Elevated densities and tighter braiding patterns augment crush resistance, safeguarding tubing from damage.
Comparative Analysis with Other Reinforcement Techniques
Braid reinforcement is contrasted with alternative methods like winding or spiraling concerning:
- Strength-to-Weight Ratio: Braid reinforcement generally boasts a superior strength-to-weight ratio compared to winding or spiraling techniques.
- Flexibility Balance: Braid reinforcement strikes a delicate balance between flexibility and strength, delivering advantages in applications necessitating agility.
- Consistency Assurance: The uniformity of braid reinforcement ensures consistent mechanical properties throughout the tubing’s length, ensuring reliability in critical applications.
Manufacturing Processes
Methods of Manufacturing Braid Reinforcement Tubing
Braid reinforcement tubing is crafted through diverse methodologies:
- Braiding: Threads of material intertwined around a central core. Form a reinforced structure.
- Extrusion: Tubing material is extruded over the braided reinforcement to form the final product.
- Coating: Additional layers may be applied to the braided structure for enhanced protection or functionality.
Machinery and Equipment Utilized in Production
Specialized equipment is pivotal in the manufacturing of braid reinforcement tubing, including:
- Braiding Machines: Automated devices intricately weave material strands into desired patterns around the core.
- Extruders: Machinery responsible for extruding tubing material over the braided reinforcement.
- Coating Equipment: Devices employed for applying supplementary coatings or layers, if necessary.
Quality Control Measures Ensuring Reliability
To uphold stringent quality standards, manufacturers implement various measures, including:
- Routine Inspections: Periodic assessments of raw materials, equipment, and finished products to detect defects or irregularities.
- Testing Protocols: Stringent testing of tubing samples for mechanical properties, dimensional precision, and durability.
- Traceability Systems: Systems tracking the manufacturing process to identify and address any issues, fostering accountability and continual improvement.
Applications
Medical Applications
Braid reinforcement tubing is indispensable in medical devices and procedures, encompassing:
- Angiography Catheters: Facilitating angiographic procedures to visualize blood vessels and diagnose cardiovascular conditions.
- Guiding Catheters: Aiding in maneuvering medical devices to specific locations within the body, such as during angioplasty or stent placement.
- Micro Catheters: Enabling minimally invasive procedures in neurology and interventional radiology, delivering precise treatment to small vessels or tissues.
Emerging Applications and Future Trends
As technology advances. Braided reinforced tubes are expected to play a key role in emerging areas including:
- Robotics: Integration into robotic systems for fluid transmission and actuation, enabling precise and agile movements.
- Wearable Medical Devices: Incorporation into wearable healthcare technology for continuous monitoring and drug delivery, aligning with the trend of personalized medicine.
- Smart Infrastructure: Integration into infrastructure systems for fluid flow monitoring and control in smart cities and buildings, enhancing efficiency and sustainability.
Environmental Impact
Assessing Environmental Footprint
Evaluating the environmental impact of braid reinforcement tubing production involves analyzing factors such as energy consumption, raw material sourcing, waste generation, and emissions throughout the manufacturing process.
Sustainable Practices and Initiatives
The industry is actively implementing sustainable practices, including material recycling, waste reduction, energy-efficient manufacturing processes, and sourcing environmentally friendly materials. Initiatives may also include certifications for environmentally responsible production methods.
Future Directions for Environmental Sustainability
Future efforts aim to further reduce the environmental impact of braid reinforcement tubing production by embracing innovative technologies, advancing material recycling techniques, optimizing manufacturing processes for energy efficiency, and exploring alternative materials with lower environmental footprints. Collaboration across the industry and regulatory bodies will be crucial in driving these initiatives forward.
CONCLUSION
Exploring Braid Reinforcement Tubing has revealed its pivotal role across industries, offering unmatched strength and durability. From its manufacturing processes to its diverse applications, braid reinforcement tubing stands as a testament to engineering innovation. By continuously improving and adhering to sustainable practices. The industry is ready to meet changing challenges. while minimizing environmental impact. As we move forward, collaboration and innovation will drive the development of braid reinforcement technology, ensuring its continued significance in modern engineering applications for years to come.
